You can apply a preset layout to your diagram to organize its entities. Use diagram layouts to neatly arrange entities without needing to manually click and drag them.

When you apply a layout to a diagram, Relational Migrator applies the layout to both the Relational and MongoDB views. The zoom level is automatically adjusted to display your chosen layout.

  1. Click the tree diagram icon at the top-left of the diagram view.

  2. Choose your layout.

Relational Migrator offers three layout options. Examples of each layout option are shown in the following tabs:

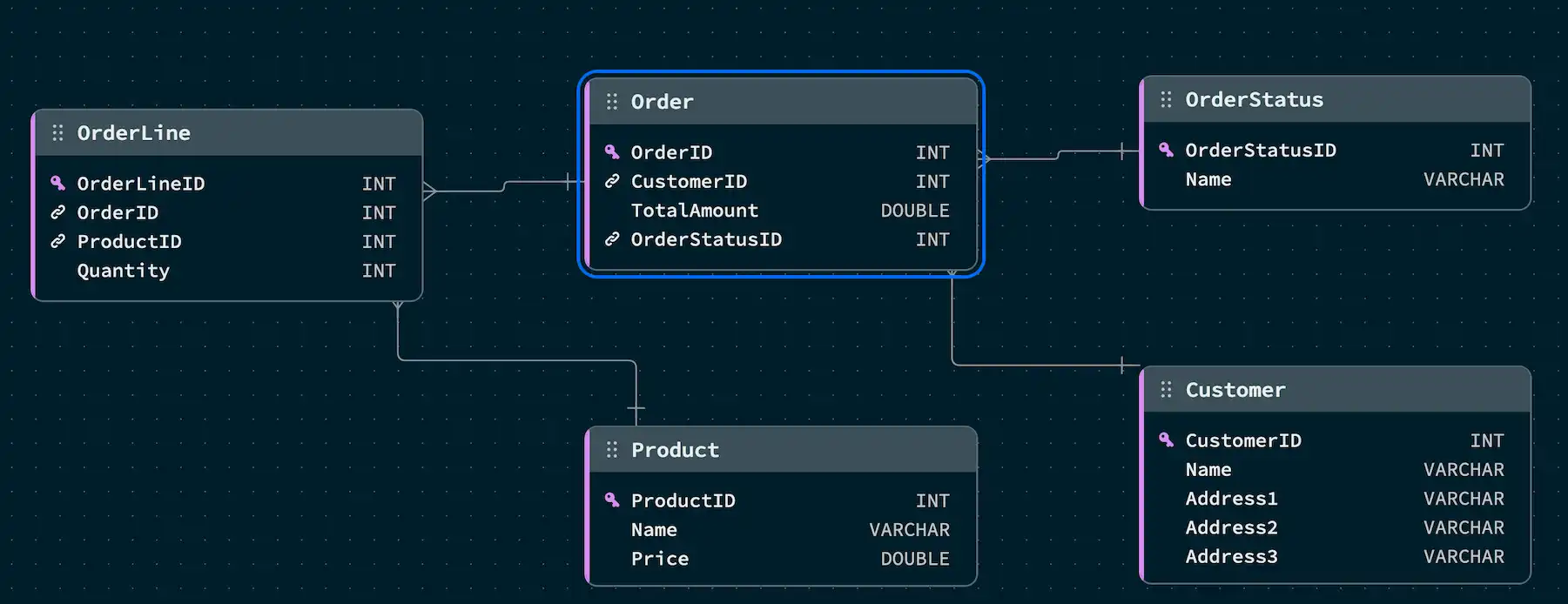

Left to Right Layout

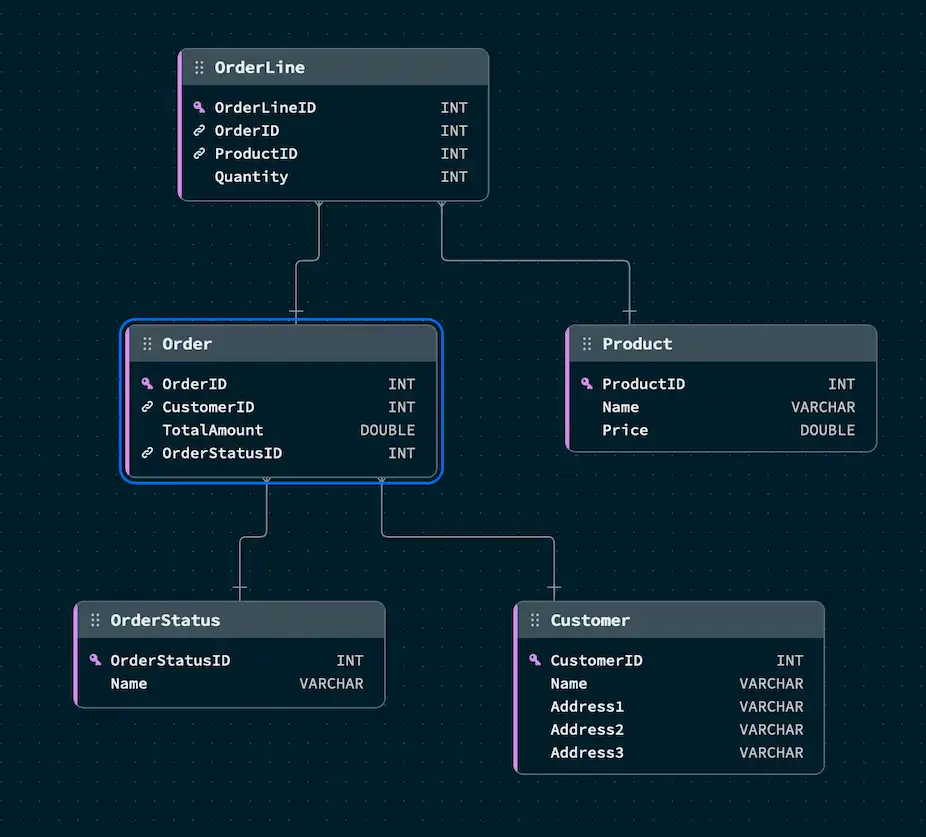

Top to Bottom Layout
Star Layout
