Write Lifecycle Diagrams

These diagrams show the lifecycle of a findAndModify operation on primary and secondary replica set members. The lifecycles of other write commands are similar, but the number of resulting oplog entries may vary.

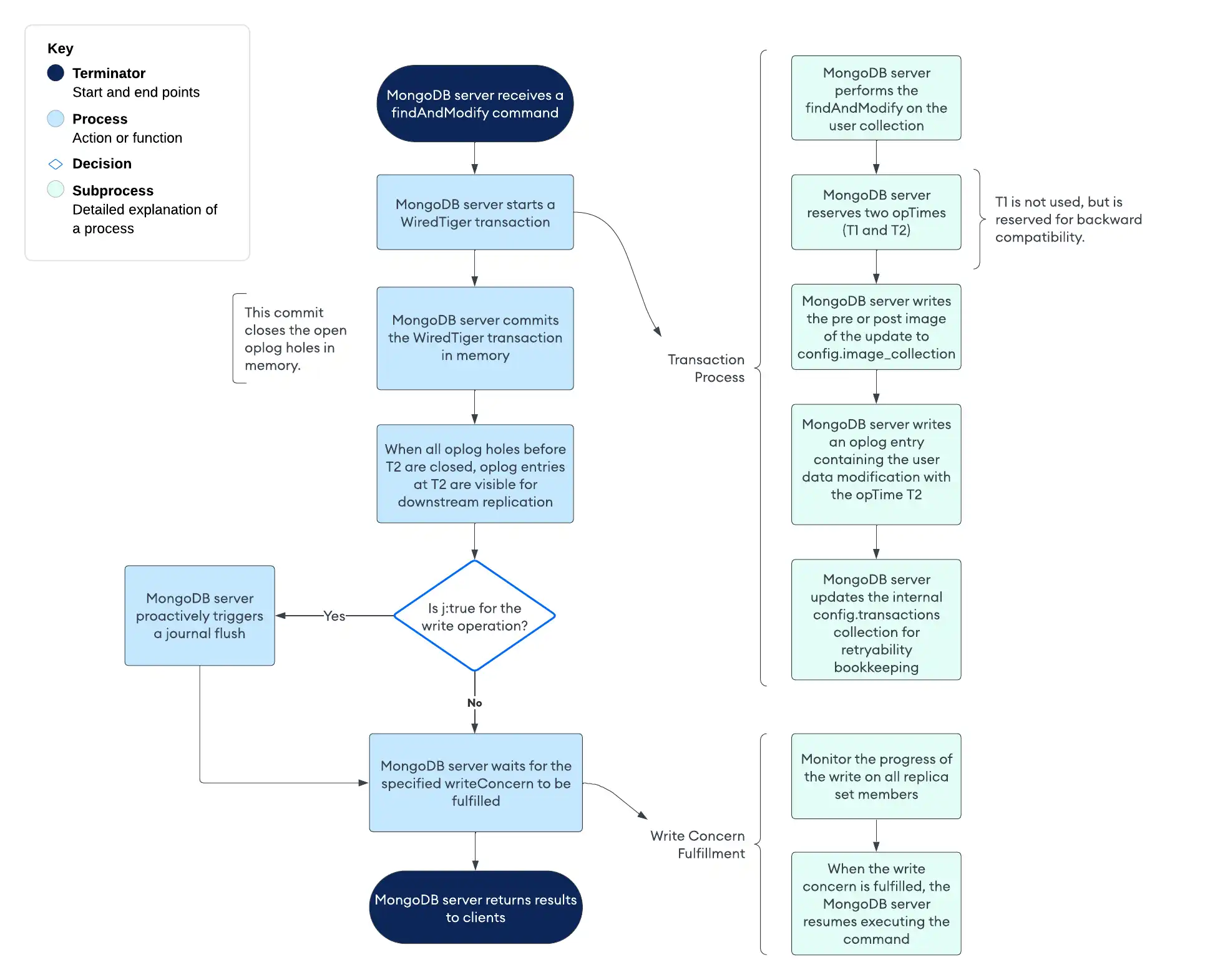

Lifecycle of a findAndModify command on a primary member
click to enlarge
Lifecycle of a findAndModify command on a secondary member
click to enlarge
