Hi Everyone,
May I know any good data model tools to draw Entity diagram for Mongo? Thanks in advance.
Foon Lui
1 Like
Hi
tools which are very light and completely text based (so you can check them in with your code in /doc) are Mermaid and Plantuml. Both have plugins in vscode. Personally I use them depending on the usecase, Mermaid is very light and pure javascript, planuml is supported in a wide range of tools but requires java and graphviz

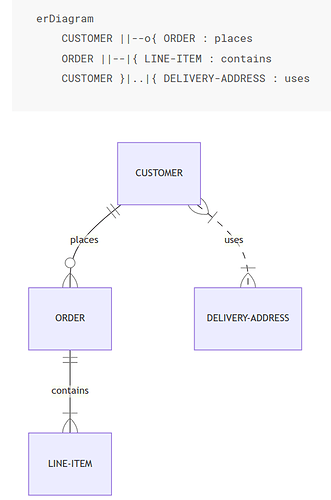

Mermaid
plantuml
Regards,
Michael
4 Likes
Thank you for your advice.
2 Likes
I just discovered this and then wen to see if theere was a MogoDB plugin for Mermaid (I’d been writing something similat but now I might do a plugin)
1 Like
Hi John,
would love to see this plugin. Any support I can provide, I’ll.
best, Michael
You can give a try to Mongo Modeler (free + open source)
