预计完成的总时间:15-20 分钟

本教程将探讨Atlas Charts的特性和功能,其中数据源包含 Atlas 提供的 Mflix Atlas示例。 此示例数据包含有关电影的信息,如发布年份、演员和评论。

以下是数据集中的示例文档:

{
"_id": {
"$oid": "573a1391f29313caabcd9637"
},
"plot": "The ancient vampire Count Dracula arrives in
England and begins to prey upon the virtuous young Mina.",
"genres": [
"Horror"
],
"runtime": {
"$numberInt": "85"
},
"rated": "APPROVED",
"cast": [
"Bela Lugosi",
"Helen Chandler",
"David Manners",
"Dwight Frye"
],
"num_mflix_comments": {
"$numberInt": "1"
},
"poster": "https://m.media-amazon.com/images/M/MV5BZDY2ODZhZWQtNDk0ZS00OGE4LWE4NjAtZjE5MTJhMjExMTRjXkEyXkFqcGdeQXVyNjc1NTYyMjg@._V1_SY1000_SX677_AL_.jpg",
"title": "Dracula",
"fullplot": "After a harrowing ride through the Carpathian mountains in eastern Europe,
Renfield enters castle Dracula to finalize the transferral of Carfax Abbey in London to
Count Dracula, who is in actuality a vampire. Renfield is drugged by the eerily hypnotic
count, and turned into one of his thralls, protecting him during his sea voyage to London.
After sucking the blood and turning the young Lucy Weston into a vampire, Dracula turns his
attention to her friend Mina Seward, daughter of Dr. Seward who then calls in a specialist,
Dr. Van Helsing, to diagnose the sudden deterioration of Mina's health. Van Helsing,
realizing that Dracula is indeed a vampire, tries to prepare Mina's fiance, John Harker,
and Dr. Seward for what is to come and the measures that will have to be taken to prevent
Mina from becoming one of the undead.",
"languages": [
"English",
"Hungarian",
"Latin"
],
"released": {
"$date": {
"$numberLong": "-1226966400000"
}
},
"directors": [
"Tod Browning"
],
"writers": [
"Bram Stoker (by)",
"Hamilton Deane (from the play adapted by)",
"John L. Balderston (from the play adapted by)",
"Garrett Fort (play)"
],
"awards": {
"wins": {
"$numberInt": "2"
},
"nominations": {
"$numberInt": "1"
},
"text": {
"2 wins & 1 nomination."
}
},
"lastupdated": "2015-08-28 00:30:04.660000000",
"year": {
"$numberInt": "1931"
},
"imdb": {
"rating": {
"$numberDouble": "7.6"
},
"votes": {
"$numberInt": "30184"
},
"id": {
"$numberInt": "21814"
}
},
"countries": [
"USA"
],
"type": "movie",
"tomatoes": {
"viewer": {
"rating": {
"$numberDouble": "3.7"
},
"numReviews": {
"$numberInt": "44035"
},
"meter": {
"$numberInt": "82"
}
},
"dvd": {
"$date": {
"$numberLong": "998956800000"
}
},
"critic": {
"rating": {
"$numberDouble": "7.9"
},
"numReviews": {
"$numberInt": "45"
},
"meter": {
"$numberInt": "91"
}
},
"lastUpdated": {
"$date": {
"$numberLong": "1442516384000"
}
},
"consensus": "Bela Lugosi's timeless portrayal of Dracula in this creepy and
atmospheric 1931 film has set the standard for major vampiric roles since.",
"rotten": {
"$numberInt": "4"
},
"production": "Universal Pictures",
"fresh": {
"$numberInt": "41"
}
}
}

通过本教程,您将学习如何使用筛选器将大型结果集细化为易于理解的Atlas Charts,以及使用多系列Atlas Charts进一步深入见解数据。

在本教程中,您将创建两个Atlas Charts:一个已排序的柱形图和一个散点图。

  • 排序柱形图显示的柱形图代表获得奖项总数至少 50 项的主管所获奖项的数量,从最高到最低排序,并按电影类型细分。

  • 散点图显示了至少获得一项奖项的电影及其 TomatoMeter 评分和 MPAA评分(G、PG、PG-13 或 R)的图表。

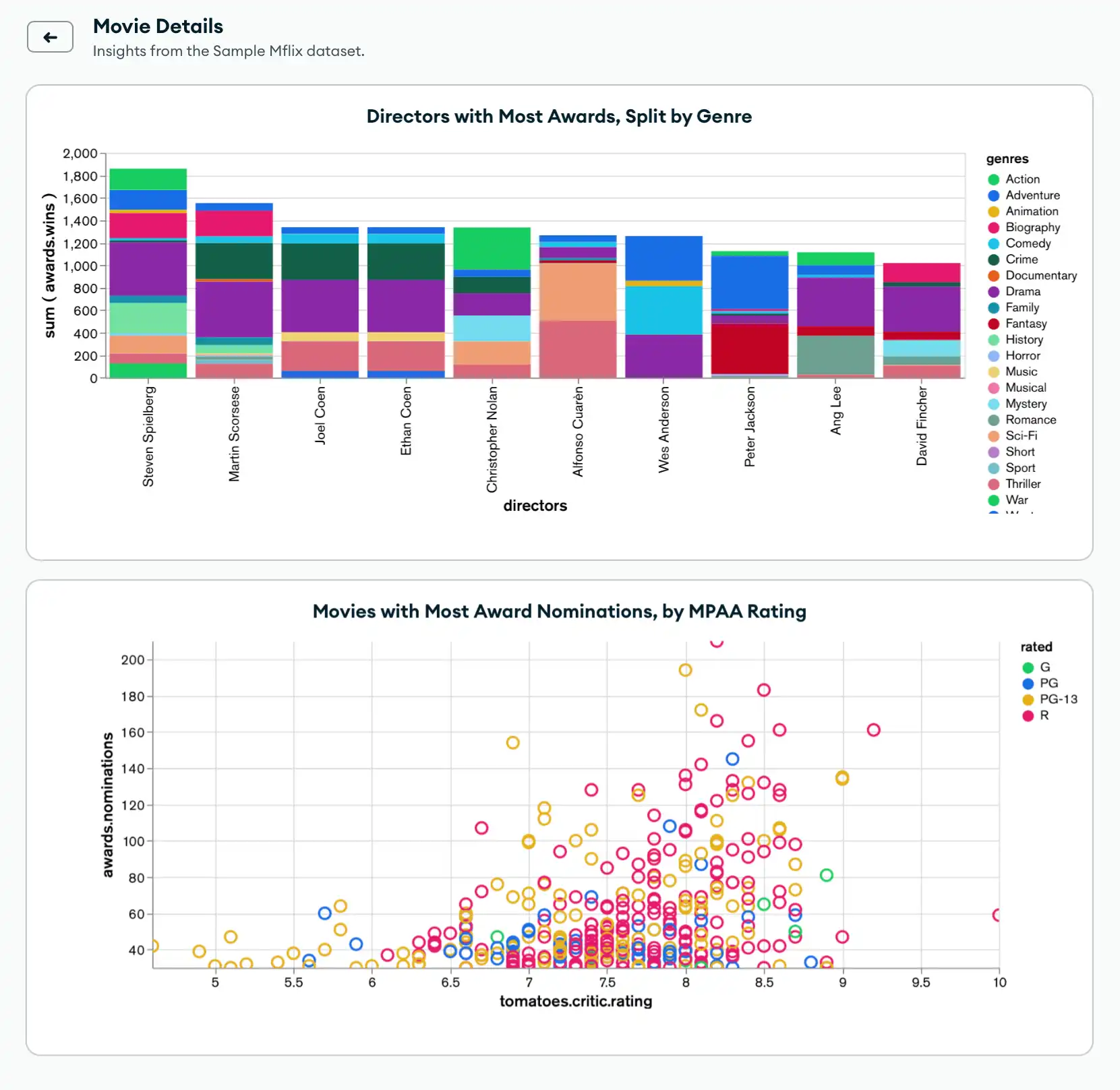

已完成的教程仪表盘
点击放大

要开始使用,请前往“加载样本数据”页面。
